Item times

project

technical parameter

remarks

1

Number of Charging Interfaces

1

2

rated voltage

380V

3

rated frequency

50Hz

4

input voltage

380V±15%

5

output voltage

200V-750V

6

rated output current

26A

7

output power(maximum)

20KW

8

CI

4G wireless network, wired network

apolegamy

9

communicating protocol

Cloud fast charge V1.5/OCCP1.6

apolegamy

10

input mode

Touch Screen

11

starting mode

Private card system / commercial credit card payment

Optional credit card, scan the code

12

display screen

7inch color industrial-grade display screen

13

monitoring platform

Integrated card issuing, operation, monitoring and maintenance in one

14

dielectric strength

≥2000V

15

leakage current

≤3.5mA

16

Protection Level

IP54

17

work environment

-20~50℃

18

Working humidity

5%-95%

19

Interface type

CCS 1/CCS 2/CHAdeMO/GB/T

20

Measurement function

Electricity meter measurement

21

protocol standard

ISO15118/DIN70121

21

cooling-down method

air blast cooling

22

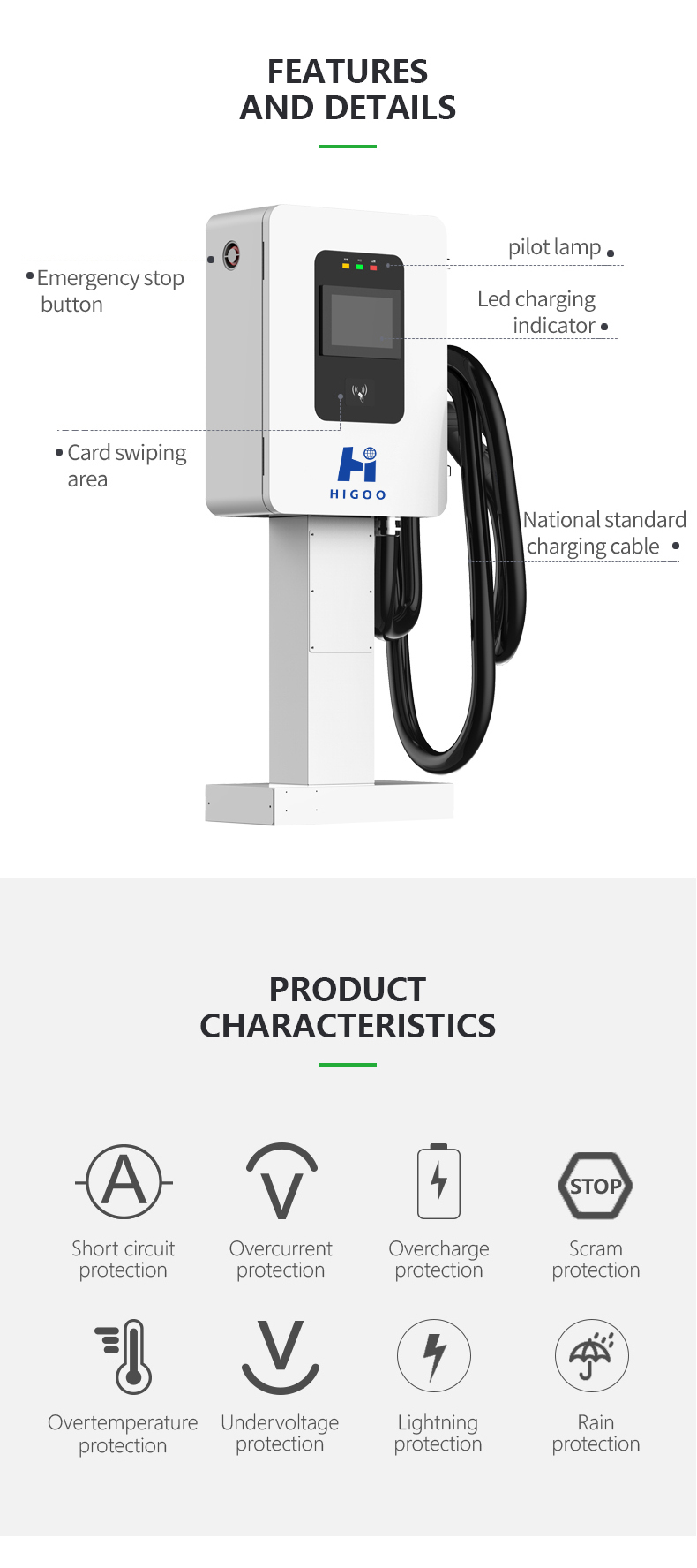

defencive function

Overvoltage short circuit protection, overload protection, leakage protection, surge protection reverse protection, over temperature protection, output over undervoltage protection, etc.

23

way to install

column

24

power factor

0.99

25

overall efficiency

94%

26

size

Length 480mm, width 250mm; respectively, height 650mm / column height 650mm

27

Interface type

CCS 1/CCS 2/CHAdeMO/GB/T
